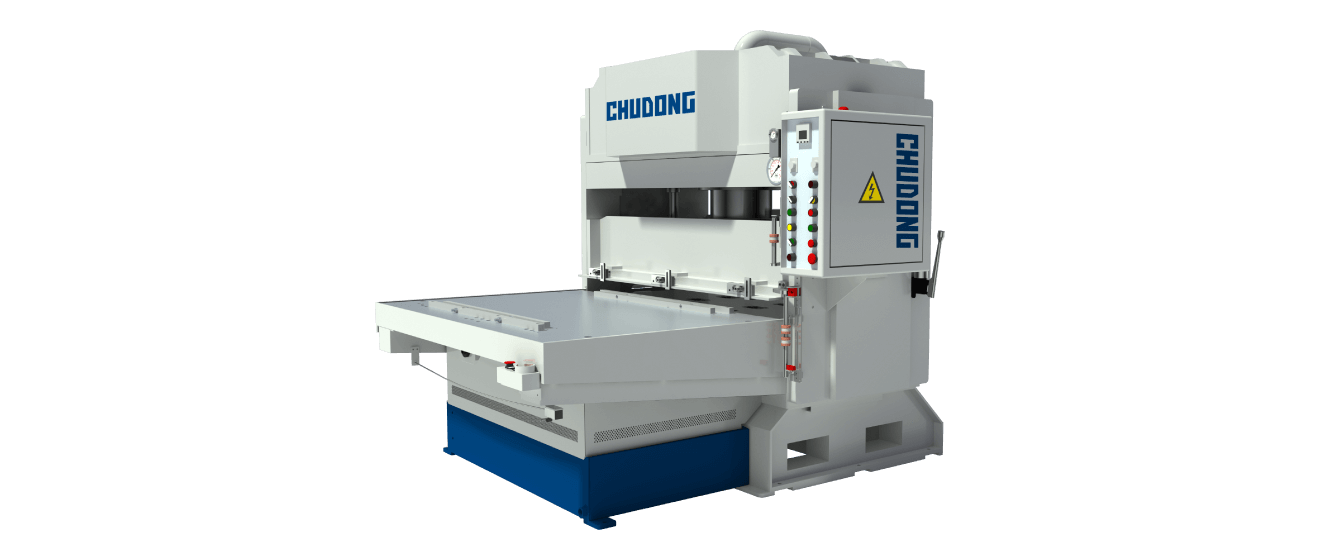

HC-155-Precision Hydraulic Double-sided Auto Feed Cutter

Precision Hydraulic Double-sided Auto Feed Cutter

Both double-side and single-side operation, time and manpower saving, one machine for two purposes to give excellent effect of production.

Double-side pressure and touch-type electronic counter watch are separatively deviced, so different sizes of product can be adopted.

Super precision oil way design, silent for performance, stable location for each action, to increase the service life of parts and tool mold deviced with cutting board rotary table, the consumption of cutting board can be reduced.

Body frame adopts high tension steel plate under stress relief process for long application without being deformed.(We welcome any special size from buyer).

Cutting for stationery, vacuum shaping, double-blister, footwear, EVA foaming disposal dinner set, combination drawing, leather, plastic brick, and oil seal, etc. various shape goods.

Specifications

Model HC-155
Dimensions of Machine L x W x H (mm) 2090*3160*2212mm
Working Area L x W (mm) 1550*840mm
Cutting force (TONS) 190 TONS
Motor (HP) 3-phase AC220V/380V
Weight of Main Unit Approximately 8200Kg
