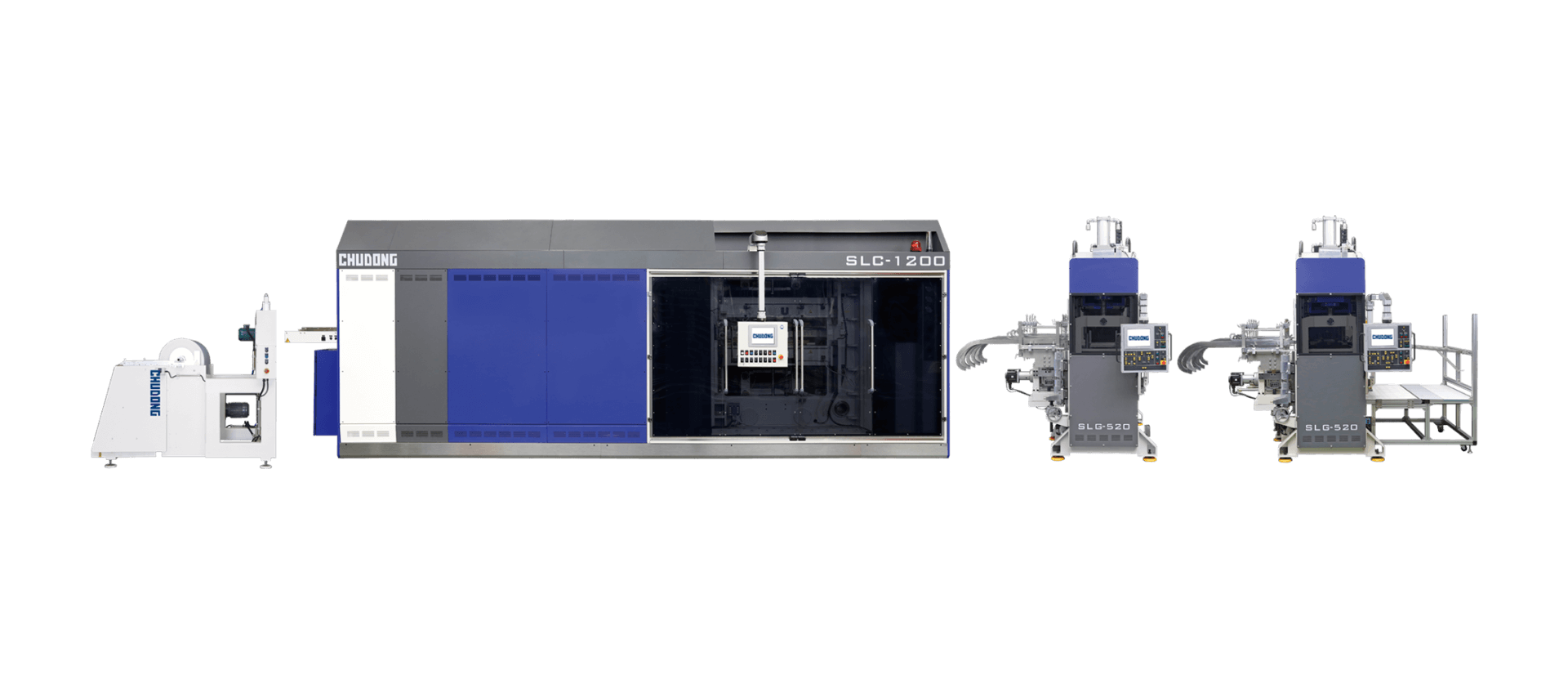

SLC1200 + SLG520:Plastic Thermoforming Machine

Japan Standard System
A Global Leading Brand in Smart Thermoforming

Side Mold Change,
Quick Product Specification Change

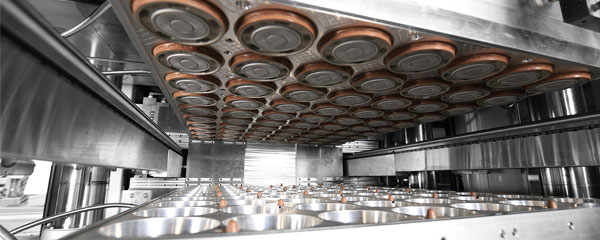

Patented High-precision Thermoforming Clamping Mechanism

CHUDONG designed this mechanism in pursuit of the high rigidity and high performance as the highest benchmark in the first place and has invested vast R&D resources in the core structural design of thermoforming. The high-pressure thermoforming efficacy is achieved by the solely developed CHUDONG equipped with the powerful robust clamping capability in combination with the high-rigidity thermoforming mainframe structure.
Perfect thermoforming must be done in 0.5 seconds after clamping, so precision, stability, performance, and efficiency of mechanical operations do matter the most. The CHUDONG SLG series with high-precision mechanisms and high-efficiency control components can make perfect finished items under easy calibration in producing respective materials besides reliable and stable outputs for the maximal effects of our clients.

Exceptional Performance, Demand-meeting Matches

CHUDONG experienced in machinery-making skills over 35 years with excellent innovation competence can easily offer you the optimal thermoforming production line with the module production system under your budget and in terms of production demands.

Cutting-edge Automatic Thermoforming Technology

10 Strengths You Cannot Miss

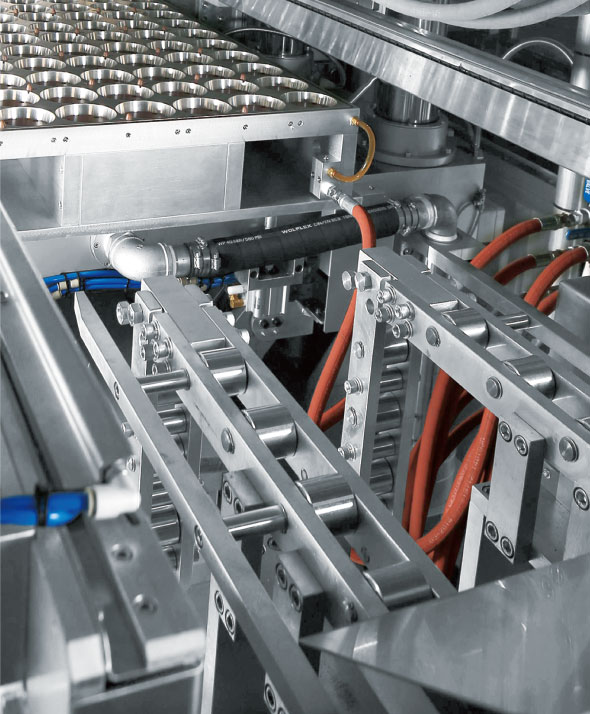

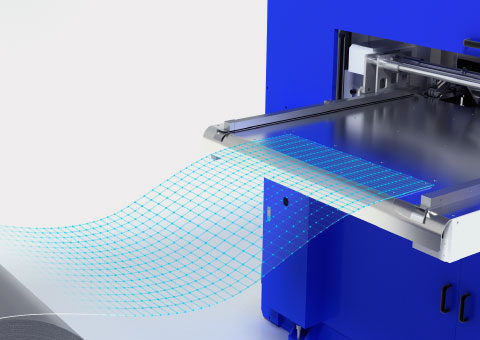

1. Feeding / Plastic Feed System

Stability and precision are kept under high-speed feeding by the hardware of the servomotor-driven feeding drum and the Japan-made chain and software of the servo control system.

2. High-Pressure Power

With the clamping power surmounting the industrial standard, CHUDONG not only cuts the material thickness via high thermoforming solidity of finished items but also secures exceptional details and ease of thermoforming.

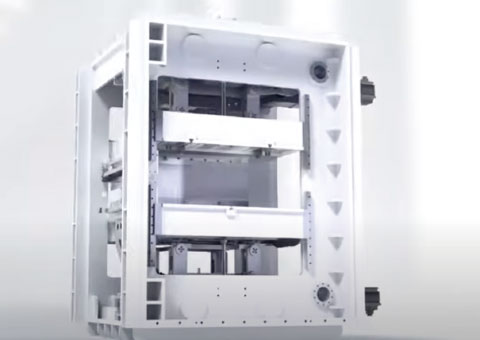

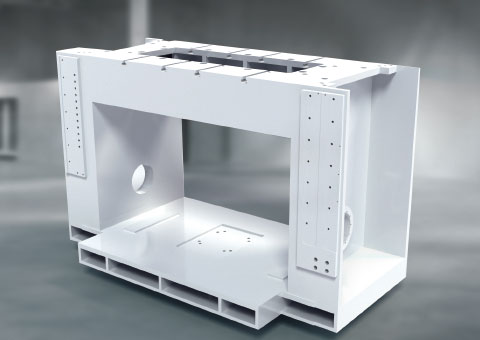

3. High Rigidity Body Design

The one-piece body structure made of high-tensile steel makes the equipment operate stably and smoothly with low vibration and low noise.

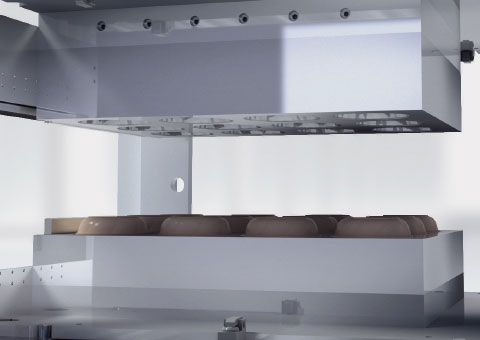

4. Lower Temperature Forming

Cold forming due to vast pressure power prevents leather from pulling due to overheating.
The effects include high-quality forming, energy saving, and long life of furnace wires.

5. Low Power Consumption

The efficacy is advanced by vast pressure power and cold forming.
The testing proves the production target attained under low power consumption by Chudong-made equipment with 30% power saving and 40% compressed air cutting.

6. Side Mold Change

Quick product specification change, stable and high-speed mold clamping system.

7. High-speed Thermal Control System

Each segment owns its independent thermal control and setting. The yield rate is improved by the precise temperature made up of the SSR PID controller.

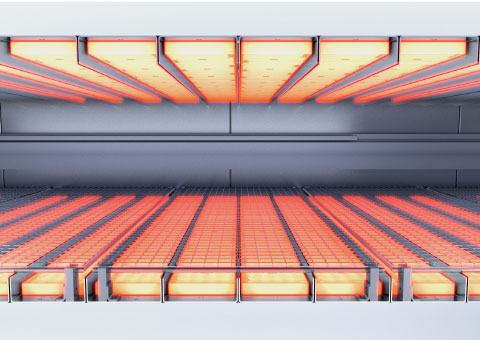

8. Long Heating Oven with Segments

The standard heating oven 3000 mm long helps thermoforming operated well. The heating device by segments 3-5 is optional for flexibility. The thermal control is precise by installing ceramic heaters made in Germany to upper and lower stoves.

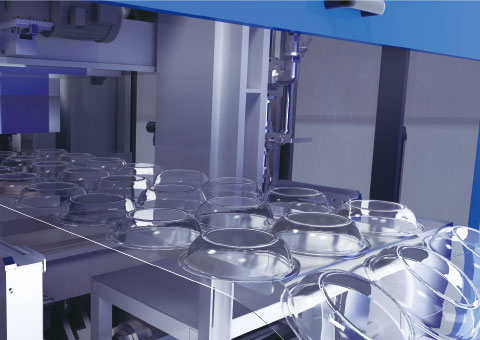

9. Ample Automation / Full Automatic Production

CHUDONG has applied automation to each link for fully automatic processing from automatic stacking & counting, automatic de-molding, and automatic lubrication system to become the benchmark.

10. Registration Forming Function
